Construction support pipe

Min.Order Quantity: 1 Ton

Supply Ability: 4800 Tons / Month

Port: Tianjin port

Certification: SGS、BV、API、CCIC,CE、ISO

Delivery Detail: 10-20 days

Payment Terms: FOB, T/T, L/C,Deferred Payment L/C

Our company accept payment after material  at your warehouse.

SEND INQUIRY

Your e-mail will not be leaked.
You can make an inquiry about this product.

Follow the Trade Assurance process and get:

  • On-time shipment and pre-shipment product quality safeguards.
  • Payment refund up to 100% of the Trade Assurance Order Amount.
  • Trade Assurance coverage.

If you are planning to good quality scaffolding pipe from one of the leading scaffolding pipe manufacturers and factory, please feel free to contact Cangzhou Zhongshun Steel Pipe Trade Co.,Ltd.

ERW Scaffolding pipe

Size OD  1/8” -24” (5.15mm-714mm)
Wall Thickness 0.4mm-26mm

SCH20,SCH40,STD,XS,SCH80,SCH160,XXS

Length Less than 12m
Steel material Q195 → SS330,ST37,ST42

Q235 → SS400,S235JR

Q345 → S355JR,SS500,ST52

Standard ASTM A53, BS1387-1985
Zinc Weight 120g,270g,400g,500g,550g

20μm ,40μm ,60μm,70μm,80μm

Usage 1)low pressure liquid, water, gas, oil, line pipe

2)construction

3)fence, door pipe

Ends 1) Plain

2) Beveled

3) Thread with Coupling or cap

4) Chamfer

5) Groove

6) Screw

End protector 1) Plastic pipe cap

2) Iron protector

Surface Treatment 1) Bared

2) Black Painted (varnish coating)

3) Galvanized

4) Oiled

5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.

Technique Electronic Resistance Welded (ERW )

Electronic Fusion Welded (EFW)

Double Submerged Arc Welded (DSAW)

Welded Line Type Longitudinal
Section Shape Round
Inspection With Hydraulic Testing, Eddy Current , Infrared Test
Package 1) Bundle,

2) Bags

Delivery 1) Container

2) Bulk carrier

Port of Shipment Xin gang Port, Tianjin, China
Date of Delivery According To The Quantity And Specification Of Each Order
Payment L/C T/T
Others

Mechanical Properities:

Product Description

                                                        Spanish Prop

Adjustable Length Out Tube Inner Tube Wall Thickness
800-1400mm 48mm 40mm 1.5-2.5mm
1600-3000mm 48mm 40mm
2000-3500mm 48mm 40mm
2200-4000mm 48mm 40mm
Surface Treatment Painted, Power Coated, Electro Galvanized or Hot Dip Galvanized

                                                       Italian Prop

Adjustable Length Out Tube Inner Tube Wall Thickness
1600-2900mm 56mm 48mm 1.5-2.75mm
1800-3100mm 56mm 48mm
2000-3600mm 56mm 48mm
2200-4000mm 56mm 48mm
Surface Treatment Painted, Power Coated, Electro Galvanized or Hot Dip Galvanized

                                           Middle East or German Prop

Adjustable Length Out Tube Inner Tube Wall Thickness
1400-2700mm 60.3mm 48.3mm 1.6-4.0mm
1600-2700mm 60.3mm 48.3mm
1620-2640mm 60.3mm 48.3mm
2000-3500mm 60.3mm 48.3mm
2200-3500mm 60.3mm 48.3mm
3000-5500mm 60.3mm 48.3mm
Surface Treatment Painted, Power Coated, Electro Galvanized or Hot Dip Galvanized



Steel pipe support

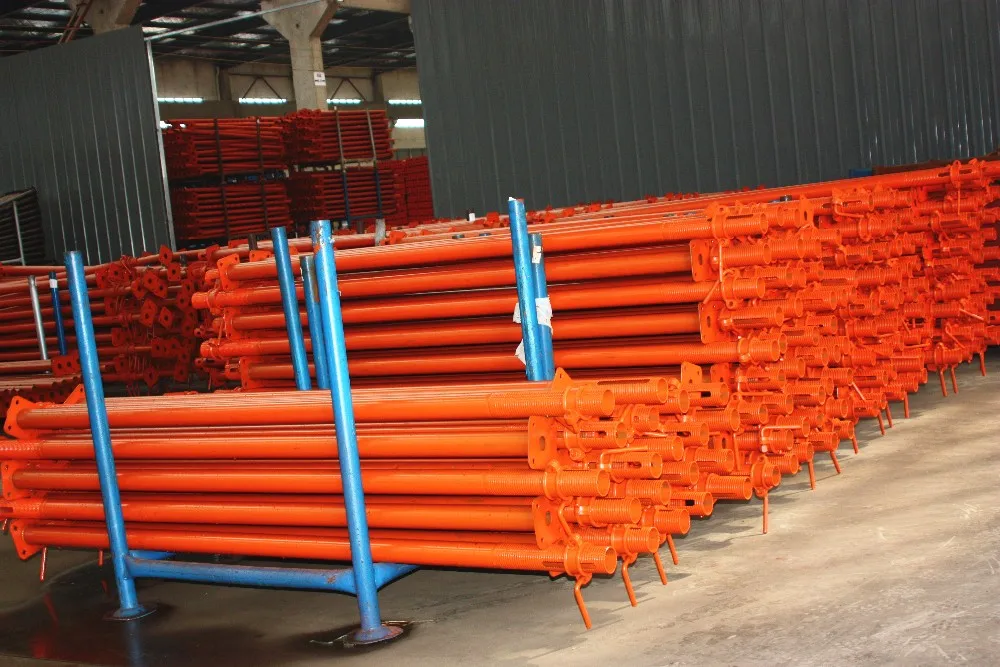

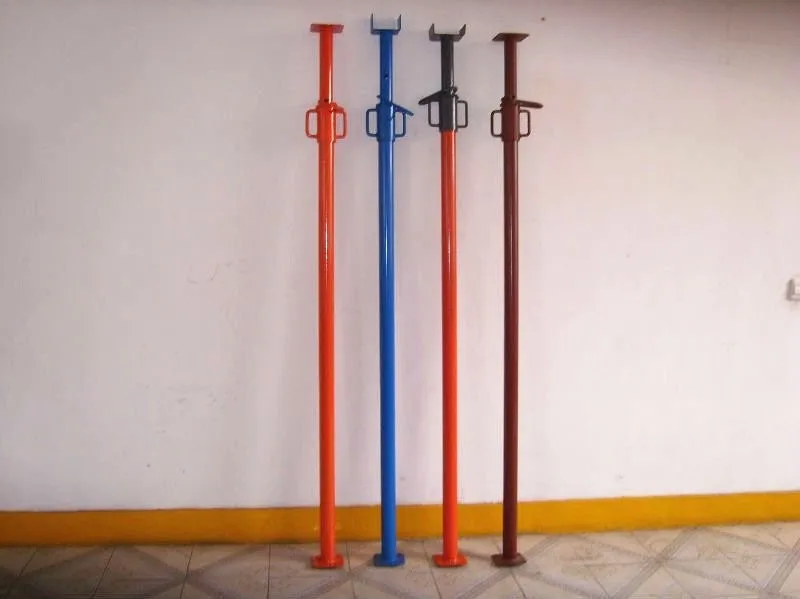

Product Show
Weights of steel scaffold prop pipe

Weights of steel scaffold prop pipe

Weights of steel scaffold prop pipe

Weights of steel scaffold prop pipe

Global Business

1. More than 10 years of sales experience

2. Product exported more than 150 countries

3. Arrange to produce according yo customer's request

Fast Delivery

1. AA level customs broker,Faster through

2. 20 years of experience in the freight forwarding company

3. Delivery Detail: 10-20 days

Trusted Quality

1. Certificate: API, CE, ISO9001.2000.MTC etc

2. Inspection: BV,SGS,others is avaliable.

3. A complete testing system and testing equipments

One-Step Service

1. Free sample can be provided

2. Small order is acceptable

3. OEM is acceptable

4. Any third party testing is acceptable
